Current Monitor
Project Reason:
I needed a current monitor to measure, especially lower currents, pretty accurately. I´ve thought of building this as a small portable device.
I will create the project in 2 parts:

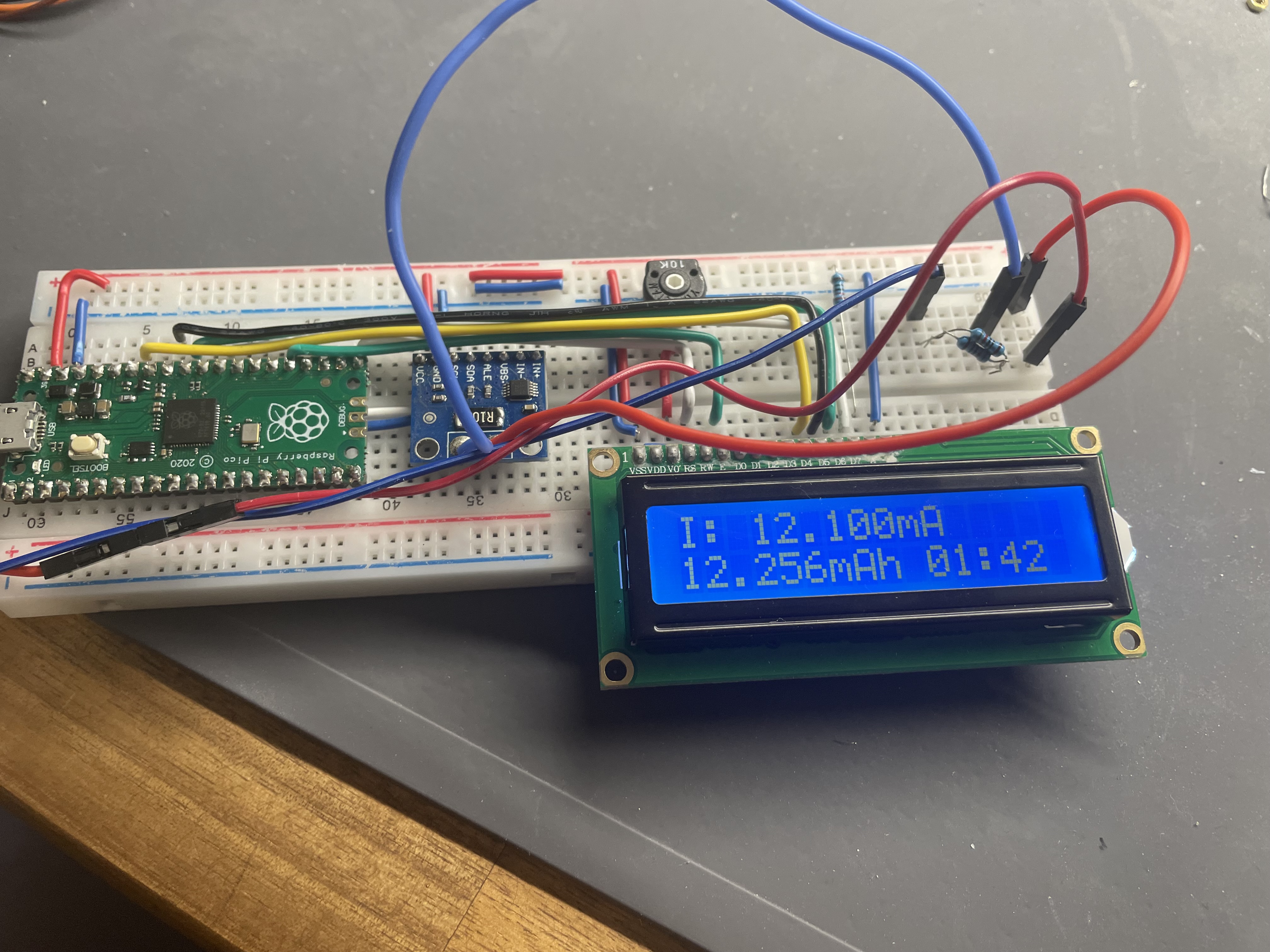

Test-setup and programming
This part includes connecting the RPi Pico, INA226 and LCD on a breadboard. Furthermore I will write the firmware to configure the INA226 via I2C, measure the current and display it on the LCD next to an accumulated current and a time counter.
Status:
Done
See sub-project
26.10.2025

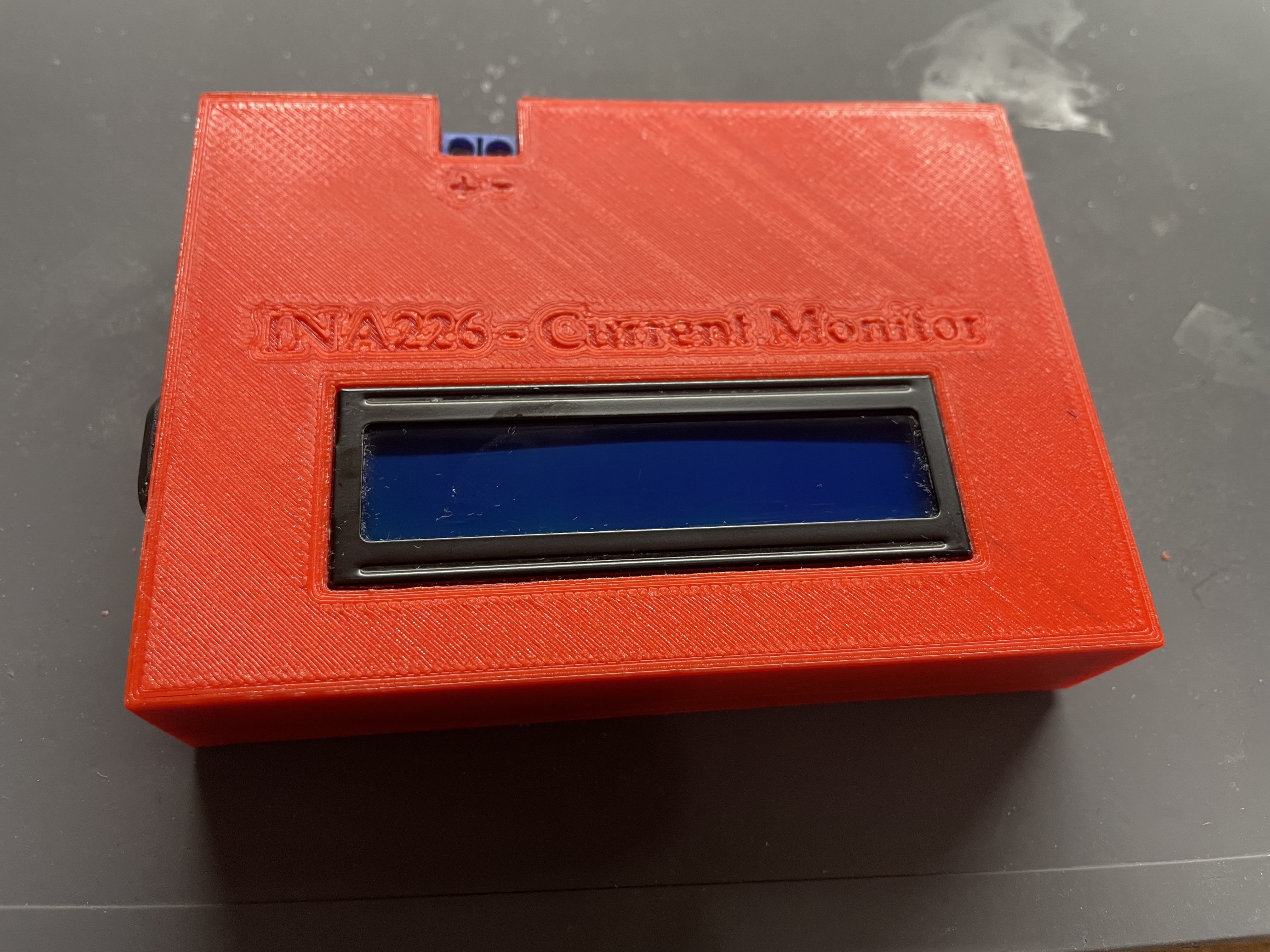

Housing for the Current Monitor
In this part I will solder all parts onto a breadboard and design/print a fitting housing.
Status:
Open
See sub-project
XX.XX.2025
